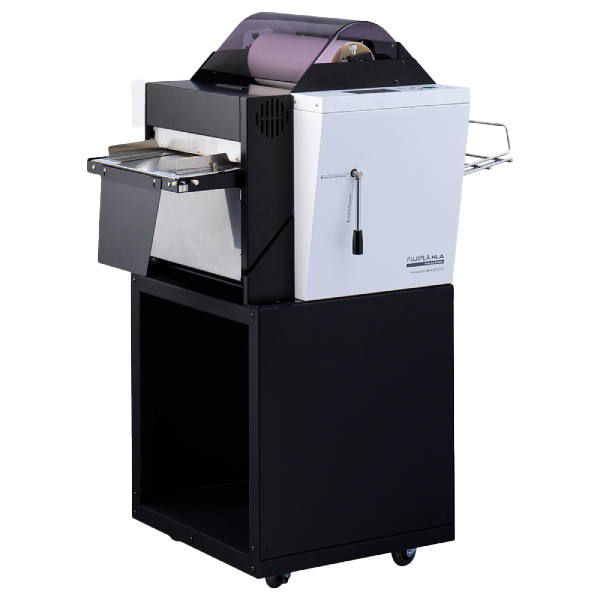

全自動過膠機

HLA-2301

可靠的覆膜自動化生產機器

– 全自動進紙 –

– 同步雙面過膠 –

– 最大尺寸A3＋ –

– 可裁切或預留四邊邊緣 –

Achieving automation of lamination processing

No need to worry about sandwiching paper between films!

Automatic paper feeding and automatic cutting on all four sides of the paper can be completed with a single button.
You can laminate smoothly as if you were using a copy machine.

Automatically detects paper size

Automatically detects and cuts paper length (148 to 500 mm) in the feeding direction, from A5 size to SRA3/Kikuji size.

Uniform and beautiful finish

Since the four sides of the paper are automatically cut, the margins of the film and the position of the paper are uniform.
The high finishing accuracy allows processes such as folding and punching to proceed smoothly.
It is possible to perform stack cutting work and processing according to the jig.

Designed to be safe for first-time users

The dedicated film is easy to set and replace.
No need to change film according to paper size.
(A size and B size can be processed with the same film)
Additional functions can be easily set on the large operation screen.
A dedicated film with an IC chip automatically sets the optimal settings for processing.

Finishing accuracy and processing efficiency

Equipped with a cut mode that allows you to choose accuracy and processing speed

2-stage cut mode:
When you want to stabilize the finished size, cut the gap between sheets of paper in two stages alternately.
There will be more film loss, but the accuracy of the finished size will increase.
1-stage cut mode:
When you want to reduce film loss, cut the gap between sheets in 1 stage from one side only.
Although the accuracy of the finished size will be slightly lower, it will shorten processing time and reduce film loss.

Fujipla ALM 系列

全自動過膠機示範

日本製做

AL-Roll Film 系列

強力膠粘劑（SAP）覆膜為數碼及柯式印刷品提供理想的粘合強度

Fujipla AL-Roll Film

類型	厚度	型號	名稱	闊度	長度	規格	覆膜數量(A4)
光面	38 micron	ALSAP38G	AL-Roll Film SAP	320mm	300mm	2 Rolls /CTN	Approx.1048 sheets
光面	75 micron	ALSAP75G	AL-Roll Film SAP	320mm	150mm	2 Rolls /CTN	Approx.524 sheets
光面	125 micron	ALSAP125G	AL-Roll Film SAP	320mm	100mm	2 Rolls /CTN	Approx 349 sheets
光面	30 micron	ALSS30G	AL Single-Side	317mm	300mm	2 Rolls /CTN	Approx.1048 sheets

類型	厚度	型號	名稱	闊度	長度	規格	覆膜數量(A4)
啞面	30 micron	ALSAP38M	AL-Roll Film SAP	317mm	300mm	2 Rolls /CTN	Approx.1048 sheets
啞面	30 micron	ALSAP75M	AL-Roll Film SAP	317mm	300mm	2 Rolls /CTN	Approx.524 sheets
啞面	30 micron	ALSAP125M	AL-Roll Film SAP	317mm	300mm	2 Rolls /CTN	Approx 349 sheets
啞面	30 micron	ALSS30M	AL Single-Side	317mm	300mm	2 Rolls /CTN	Approx.1048 sheets

類型	厚度	型號	名稱	闊度	長度	規格	覆膜數量(A4)
啞面	30 micron	ALECO30SM	AL Silk Matte	320mm	300mm	2 Rolls /CTN	Approx.1048 sheets
啞面	75 micron	ALECO75SM	AL Silk Matte	320mm	150mm	2 Rolls /CTN	Approx.524 sheets
啞面	125 micron	ALECO125SM	AL Silk Matte	320mm	100mm	2 Rolls /CTN	Approx 349 sheets
